Shetland
- Description
Description
- The Shetland is a large format, interlocking clay tile which has a smooth, clean and sharp finish
- It has an ultra-thin leading edge which is aesthetically pleasing
- The Shetland is a cost effective alternative to fibre cement / man-made slate

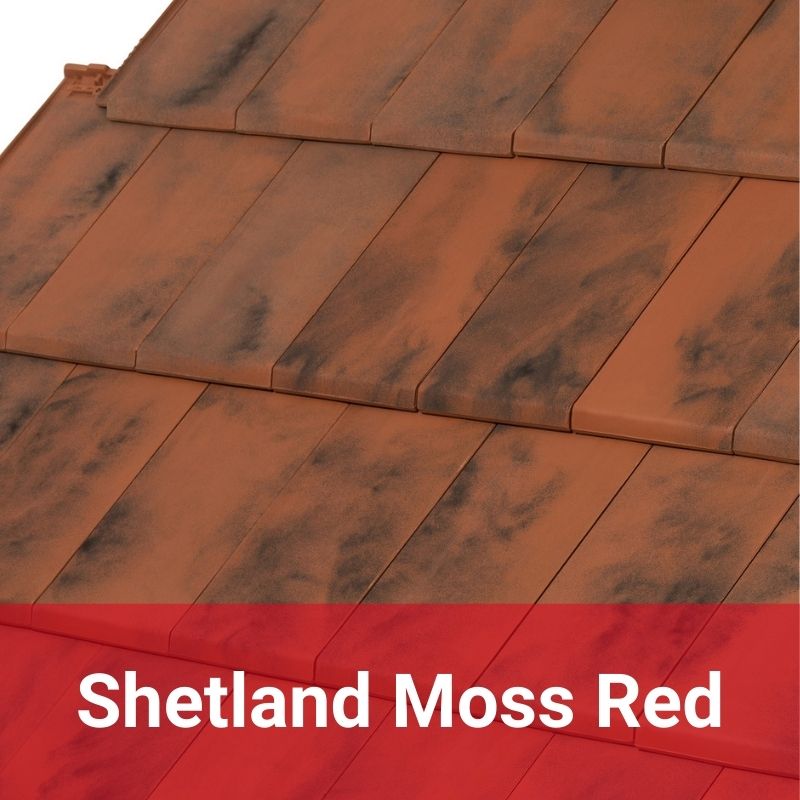

- These tiles are available in a range of permanent colours (slate black, brown, mid grey, red and moss red) which may mellow over time, but will never fade
- It is easy and quick to install, with only 10 pieces required per m²
- Our Shetland clay tiles have excellent thermal values and help to regulate the temperature in your home
- Shetland is fitted using our Soltera Fixing system which greatly increases the speed of installation whilst improving performance
- The Shetland is covered by a 60 year guarantee
GET A QUOTE or ADVICE ON
Click & complete online form or call us on 02877741686
Product Detail
Info
case studies
Info
Tile Size | 469mm x 285mm |
Minimum Roof Pitch | 17.5 degrees / For 12.5 degrees contact LBS |
Minimum Headlap | 65mm |
Maximum Headlap | 100mm |
Batten Spacing at Max Gauge | 405mm |
Batten Spacing at Min Gauge | 365mm |
Covering Capacity per sqm | 10 tiles per sqm at max gauge |
Hanging Length | 445mm |
Nominal Cover Width | 245mm |
Weight per Tile | 3.6kg |
Weight of tiling per sqm (approx) | 36kg |
Leading Edge Depth | 8mm |
Battens Required per sqm approx | Min 2.47, Max 2.71 |
Batten Size- up to 450mm rafter | 50x25mm |
Batten Size – up to 600mm rafter | 50x37mm nb. special fixing req |
Batten Size RoI | 45x35mm |
Tile Nails | Soltera Fixing System |
Tile and Eave Clips | Soltera Fixing System |
Accessories Available | Dry Verge, Ridge and ventilation |
