Breedon Dublin Roof Tile
- Description
Description
Breedon’s traditional concrete interlocking flat style tile is fixed on the roof in a broken bond pattern. This tile gives a clean and modern look to any home. The Breedon Flat Tile provides an extremely high quality and affordable alternative to natural slate.
Available in 4 colours to ensure you have the perfect choice for your project:
- Black
- Anthracite
- Brown
- Antique Red
 |
 |
 |
 |
GET A QUOTE or ADVICE ON
Click & complete online form or call us on 02877741686

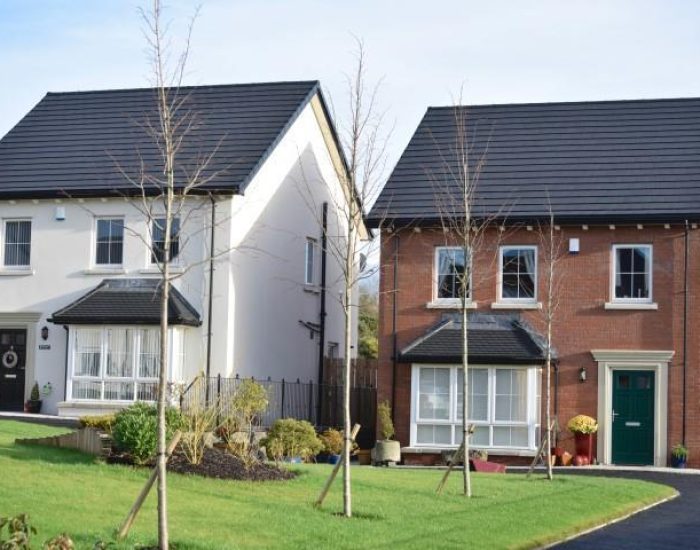

Breedon Dublin Roof Tile Gallery
Product Detail
Info
case studies
Info
Technical Specifications
| Size of Tile Overall | 420 x 330mm |
| Minimum Pitch | 17.5 degrees (for rafter length over 8 metres or sites with a high level of exposure please consult our technical department) |
| Maximium Pitch | 90 Degrees (subject to fixing specifications) |
| Headlap (minimum) Headlap (maximum) | 75mm above 25 degrees / 100mm at 25 degrees or below |
| Gauge (maximum) | 345mm |
| Cover width of one tile (nominal) | 297mm |
| Covering Capacity (Headlap 75mm) | 9.8 tiles / sq metre |
| Covering Capacity (Headlap 100mm) | 10.5 tiles / sq metre |
| Hanging Length (nominal) | 400mm |
| Weight per 1000 (approx) | 5.45 tonnes |
| Recommended Batten size (see BS5534) Rafter centres up to 600mm | 50 x 25mm |
| Recommended Nail size | 50mm x 3.35mm |
